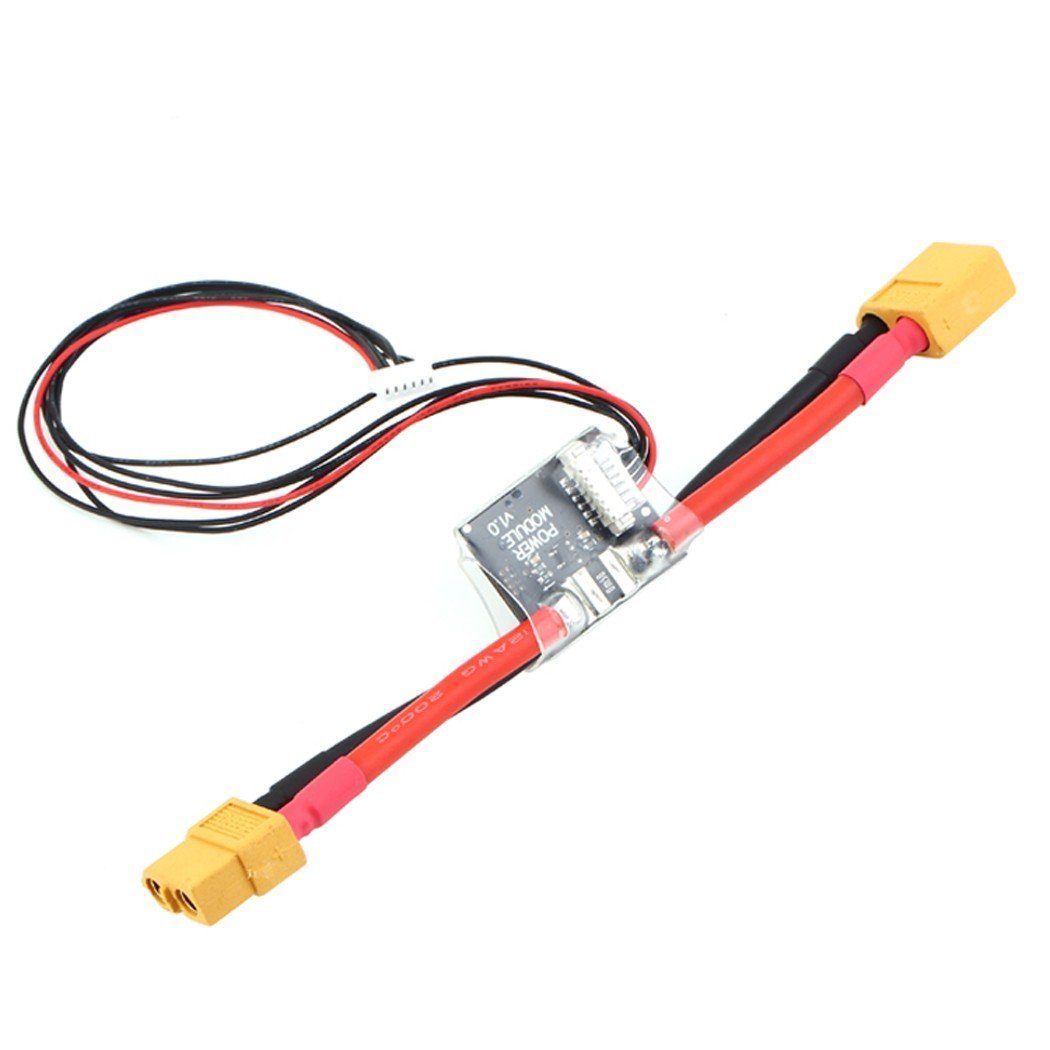

The APM Power Module is a simple way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

Specifications:

• Max input voltage: 18V
• Max current sensing: 90A
• Voltage and current measurement configured for 5V ADC
• Switching regulator outputs 5.3V and 2.25A max
• 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
