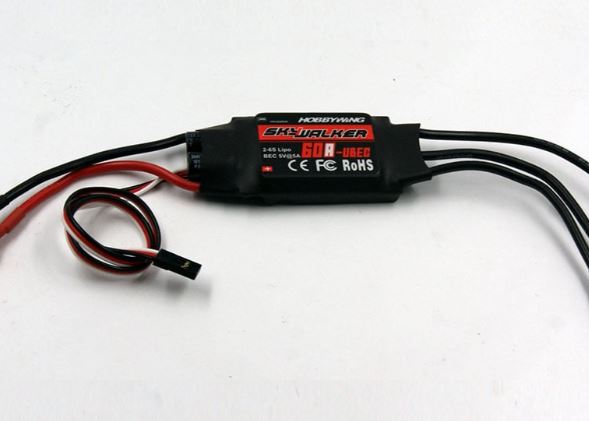

Hobbywing Skywalker-60A is made within Hobbywing Factory. It uses Linear mode BEC instead of Switching mode BEC (BEC is the circuit that powers the Servos and other electronics on the heli), so the price can come down. Overall, Hobbywing Skywalker-60A still does the job of providing 60A power to the motor, just it’s a bit hotter than other 60A.
Features:
- Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
- Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
- User programmable.
- Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
- Compatible with LiPO and NiMH battery.
- Timing can be changed to be suitable for different brushless motors.
- Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
- Power connectors and motor connectors are not included.
Specification
- Output: Continuous 60A.
- Input Voltage: 3-6S Lipo, 5-18 cells NiMH.
- BEC: 7A / 5V Switch Mode BEC.
- Refresh rate of the throttle signal: 50Hz to 432Hz.
- Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. (BLM = Brushless Motor)
- Dimensions: 3 * 1.4 * 0.6in.
- Weight: 65 grams
Package Includes :
1 x Hobbywing Skywalker-60A
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. Replacement will be done against manufacturing defects. Warranty voids if the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
